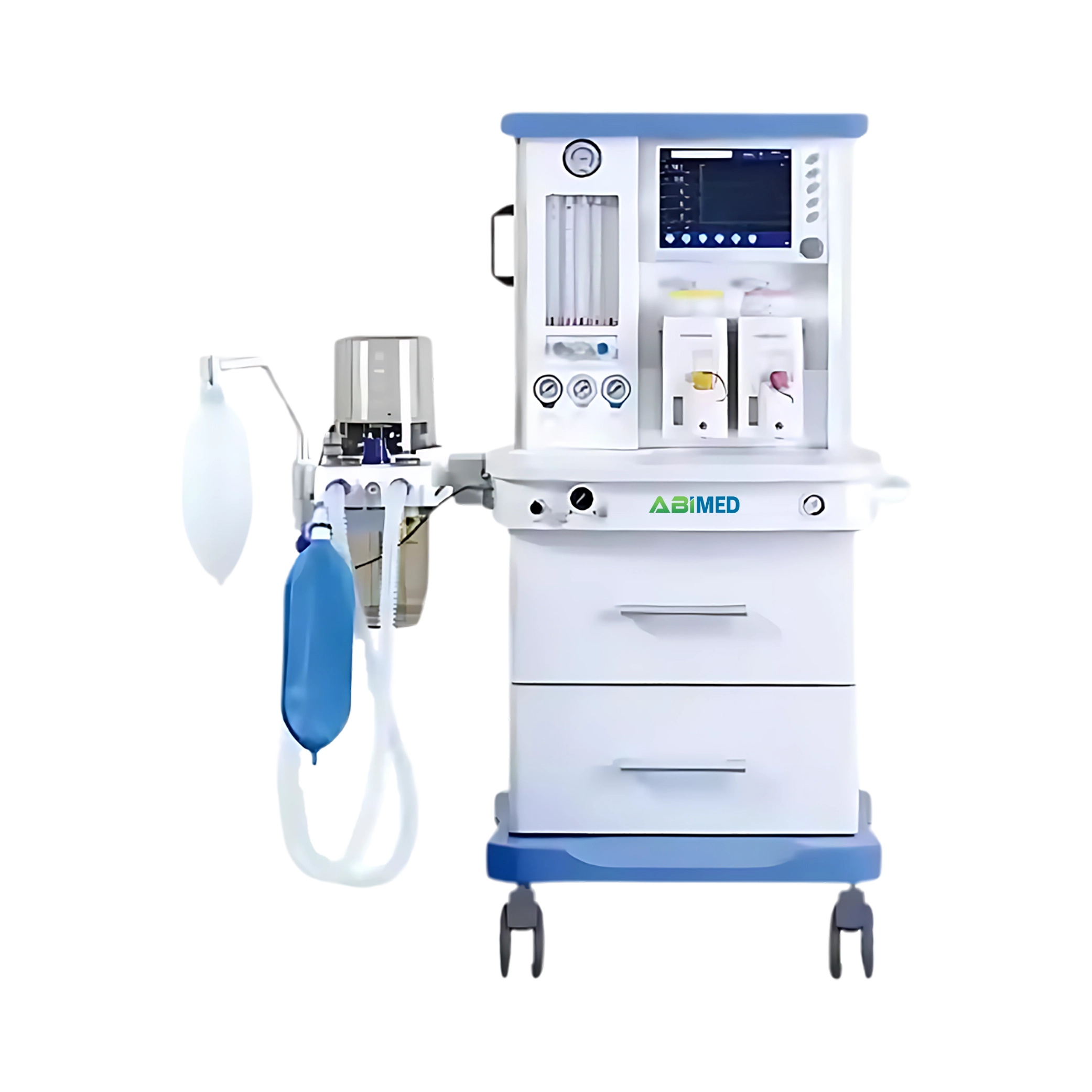

Anesthesia Machine with Ventilator AM-AM32 offers multiple ventilation modes including IPPV, V-A/C, P-SIMV, etc for various patient needs. It provides a tidal volume (Vt) ranging from 0, 20 mL to 1500 mL. Coupled with a breathing circuit to deliver gases to the patient and remove exhaled gases smoothly. Equipped with a 10.4-inch TFT LCD screen for real-time monitoring of vital parameters and waveforms.
Catalog
| Ventilation Modes | IPPV V-A/C P-A/C V-SIMV P-SIMV PCV-PC PCV-V PSV SIGH MANUAL |
|---|---|
| Tidal Volume (Vt) | 0, 20 mL to 1500 mL |
| Flowmeter | O₂ (0.1 to 10 L/min) N₂O (0.1 to 10 L/min) AIR (0.1 to 10 L/min) |
| Pressure Limit | 10 cmH₂O to 100 cmH₂O |
| Rapid Oxygen Supply | 25 L/min to 75 L/min |
| Frequency (Freq) | 1 /min to 100 /min |
| I: E | 4:1 to 1:8 |
| PEEP | 0 cmH₂O to 30 cmH₂O |
| Pressure Triggering Sensitivity (PTr) | 20 cmH₂O to 0 cmH₂O (Based on PEEP) |
| Flow Trigger Sensitivity (FTr) | 0.5 L/min to 30 L/min |
| Pressure Control (PC) | 5 cmH₂O to 70 cmH₂O |
| SIGH | 0 (off) 1/100 to 5/100 |
| Apnea Ventilation | OFF, 5s to 60s |
| Oscillogram | P-T (pressure-time) F-T (flflow-time) V-T (volume-time) ETCO2-T (ETCO2-time) P-V loop (pressure-volume loop) P-F loop (pressure-flflow loop) F-V loop (flflow-volume loop) |
| Low Battery Voltage Alarm | < 10.2 ± 0.3 V |
| No Tidal Volume | ≤ 5 mL within 6s |
| High Oxygen Concentration Alarm | 19 % to 100 % |
| Low Oxygen Concentration Alarm | 18 % to 99 % |
| High Airway Pressure Alarm | 20 cmH₂O to 100 cmH₂O |
| Low Airway Pressure Alarm | 0 cmH₂O to 20 cmH₂O |
| High-Minute Volume Alarm | Adult (5 L/min to 20 L/min) |
| Low-Minute Volume Alarm | Paed (1 L/min to 15 L/min, 0 to 10 L/min) |
| Continuous Pressure Alarm | (PEEP +1.5 kPa) over 16 s |
| Suffocation Warning | 5s to 60s no spontaneous ventilation |
| Maximum Limited Pressure | ≤ 12.5 kPa |
| Gas Source | 280 kPa to 600 kPa |
| Monitoring Frequency (Freq) | 0 /min to 100 /min |
| Monitoring Tidal Volume (Vt) | 0 mL to 2000 mL |
| MV | 0 L/min to 100 L/min |
| AC Power Failure Alarm | Power failure or no connection |
| Fan error | Show on screen |
| Oxygen Deficit | Show on screen |
| Oxygen Concentration | 15 % to 100 % |
| Power input | 80 VA |
| Power Consumption | 100 to 240 V |
| Power Supply | 50/60 Hz |
| Dimensions (L×W×H) | 920×970×1380 mm |
| Net Weight | 87.5 kg |
| Gross Weight | 155 kg |
Vital sign monitor
Anesthesia Machine with Ventilator offers advanced ventilation modes and ergonomic design for safe inhalation anesthesia and respiratory management in various medical settings, accommodating patients of all ages.
Anesthesia Machines are designed to ensure patient safety, efficiency, and reliability in every procedure. Engineered with precision, this cutting-edge device seamlessly integrates advanced technology for optimal anesthetic delivery. They offer Real-time analytics and alarms, minimizing risks and enhancing patient outcomes. Our compact device offers patient care and operational excellence with its smart performance, intuitive interface, comprehensive tracking, and durability.
| Gas source | O2: 0.27 to 0.55MPa |
| Flow meter | O2: 0.1 to 1.0L/min; 1.1 to 10L/min |
| Flow rate of rapid oxygen supply | 25 to 75L/min |
| Gas source | O2: 0.27 to 0.55MPa; N2O: 0.27 to 0.55MPa |
| Flow meter | O2: 0.1 to 1.0L/min, 1.1 to 10L/min N2O: 0.1 to 1.0L/min, 1.1 to 10L/min |
| O2, N2O linkage and N2O Stopper | When using nitrous oxide, oxygen concentration>25%; When the oxygen pressure<0.2MPa, the flow of nitrous oxide would be cut off |
| Gas source | O2: 0.27 to 0.55MPa; N2O: 0.27 to 0.55MPa |
| Flow meter | O2: 0.1 to 1.0L/min, 1.1 to 10L/min N2O: 0.1 to 1.0L/min, 1.1 to 10L/min |
| O2, N2O linkage and N2O Stopper | When using nitrous oxide, oxygen concentration>25%; When the oxygen pressure<0.2MPa, the flow of nitrous oxide would be cut off |
| Gas source | O2: 0.27 to 0.55MPa; N2O: 0.27 to 0.55MPa |
| Flow meter | O2: 0.1 to 1.0L/min, 1.1 to 10L/min |
| O2, N2O linkage and N2O Stopper | When using nitrous oxide, oxygen concentration>25%; When the oxygen pressure<0.2MPa, the flow of nitrous oxide would be cut off |
